Angle

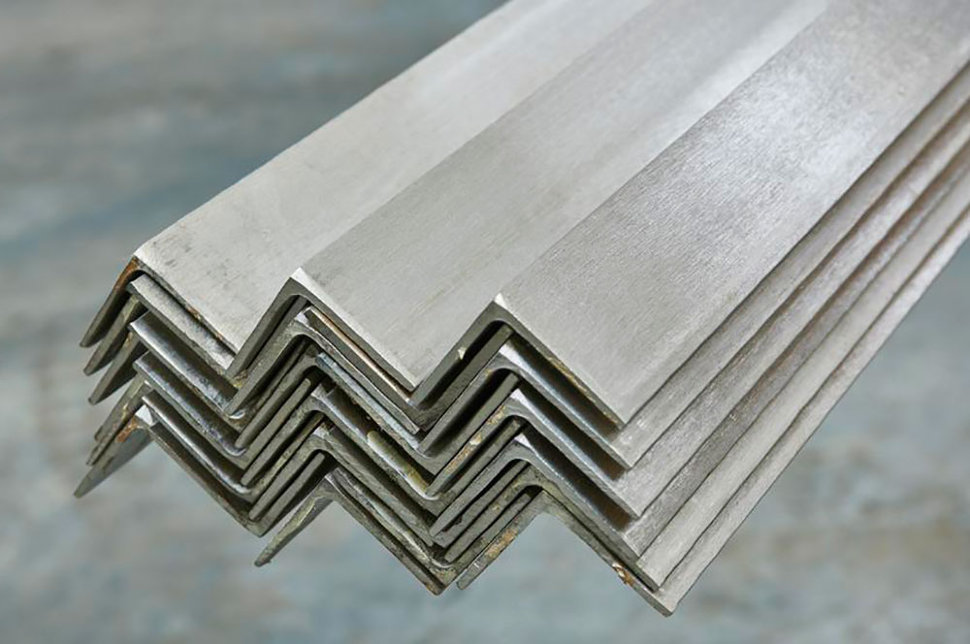

Angles, also known as angle bars or L-shaped bars, are structural steel components commonly used in construction, engineering, and industrial applications. They feature a 90-degree angle with two legs of equal or unequal lengths, offering excellent strength and stability. Angles are available in various materials, including mild steel, carbon steel, stainless steel, and aluminum, making them suitable for a wide range of uses. These versatile components are widely used in framing, support structures, bridges, and reinforcement applications. In the construction industry, angles provide reliable load-bearing support for buildings and frameworks. They are also utilized in manufacturing equipment, machinery parts, and transportation systems. Stainless steel angles are preferred in environments exposed to moisture or chemicals due to their corrosion resistance.
We offer our customers a wide range of Angles widely find its applications in different industrial & commercial sectors. Also these are scratch-proof and corrosion resistant and offer greater load bearing capacity. These are available in various dimensions of width, leg height, material thickness and other parameters.

Stainless Steel

ASTM A479, A182 - 304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L, 17-4PH & 400 Series
Mild Steel

Gr. 1008, 1010, 1015, 1020, CK35, CK45, CK55, CK60 Etc.
Carbon Steel

ASTM A105, A350 LF2
Alloy Steel

ASTM A182 F5, F9, F11, F12, F21, F22, F91
High Nickel Alloys

Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel
Non Ferrous

Copper

Angle

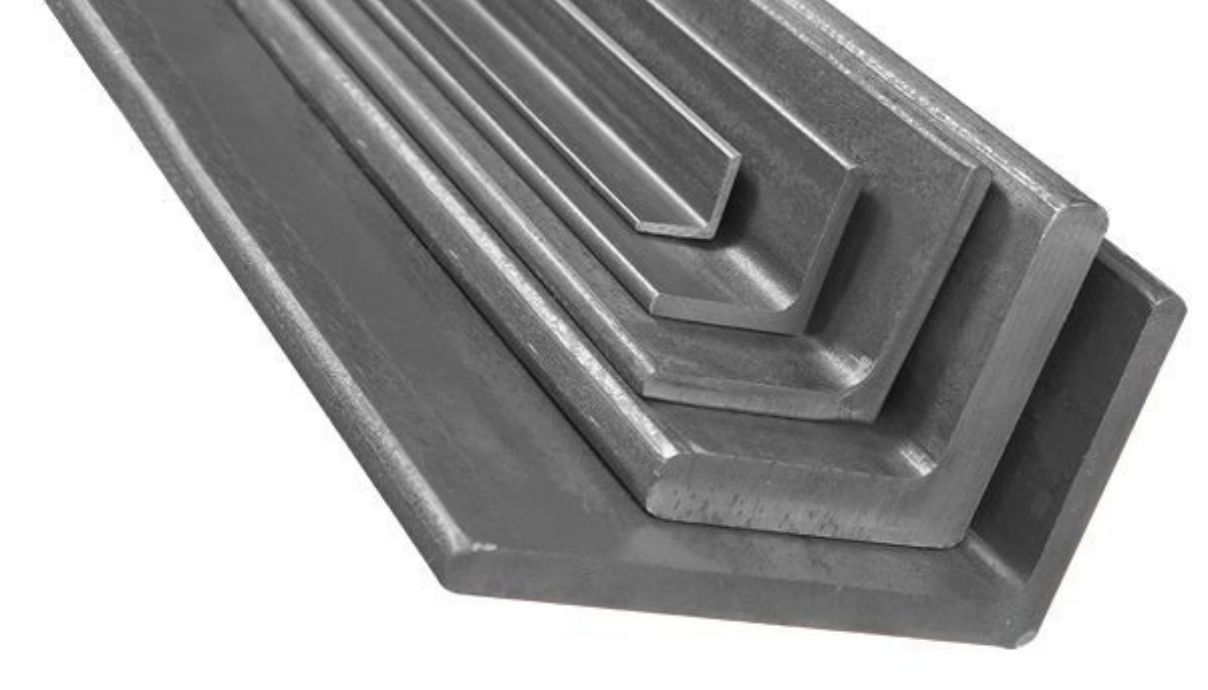

One of the most commonly used Steel Products in construction is MS Angles and we specialize in supplying Wholesale Mild steel Angles. We Supply Equal Angles, Unequal Angles and T Angles which are available in different thickness and dimensions.

Specifications
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI
Type Equal Angle, Unequal Angle
Thickness 3.0mm – 120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Angle 5mm to 9mm
Size in mm 3 4 5 6 8 10 12 16 18 20 25
20*20 0.9 1.1
25*25 1.1 1.4 1.8 2.2
30*30 1.4 1.8 2.2 2.8
35*35 1.6 2.1 2.6 2.8
40*40 1.8 2.4 3.0 3.5
45*45 2.1 2.7 3.4 3.5
50*50 2.3 3.0 3.8 4.5
65*65 4.9 5.8 7.7 9.4
75*75 5.7 6.8 8.9 11.0
80*80 7.3 9.6 11.8 14.0
90*90 8.2 10.8 13.4 15.8
100*100 9.2 12.1 14.9 17.7
110*110 13.4 16.5 19.6 24.2
130*130 15.9 19.7 23.4 28.9
150*150 22.8 27.2 35.8 39.9 11.1
200*200 36.6 48.5 54.0 60.0 73.6
