Fittings
Pipe Fitting
Pipe Fittings Specification
| Pipe Fittings Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Pipe Fittings size | Seamless Butt Weld Fittings : 1/2" - 10" Welded Butt Weld Fittings : 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A403 SS Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP Buttweld Fitting |
| ASTM A403 SS Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 403 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturing Standards of Stainless Steel Buttweld Fittings
| ASME B16.9 ASTM A403 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
|
Stainless Steel
|
ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
|
Titanum
|
ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL -4V ELI) |
|
High Nickel Alloys
|
ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |
|
Duplex
|
ASTM A182 / UNS S31803 & S32205 (2205) |
|
Super Duplex
|
ASTM A182 / UNS S32750 (2507) & S32760. |
ELBOW
Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered
Stainless Steel
ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.

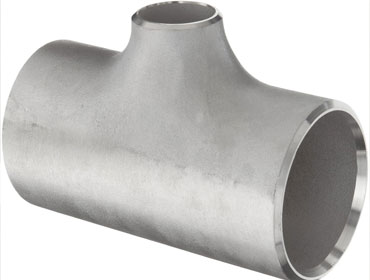

REDUCING TEE
Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered
Stainless Steel
ASTM A 182, A 240
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.
EQUAL TEE
An equal tee is a T-shaped device with three openings that act as outlets for the pipe. All three ends of the equal tee are the same size. We can provide equal tees in different metals, such as monel, nickel, Inconel, Hastelloy, copper, brass, carbon steel, stainless steel and titanium. Custom equal tees can be developed to meet the specific application requirements of clients.

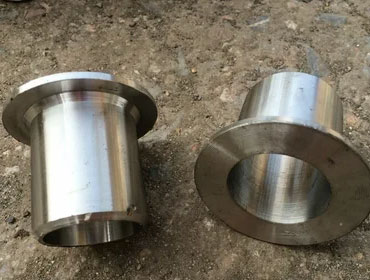

LONG & SHORT STUB END
Size1/8″NB to 48″NB IN
Schedule
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type
Seamless / ERW / welded / fabricated
Form
Long stub end & short stub end
SWAGE NIPPLE & BARREL NIPPLE
We provide Swage Nipples and Barrel Nipples that are specially designed to withstand high temperatures and pressure. These can be used for permanent welded connections or detachable thread connections. Our range is available in various specifications to meet the specific requirements of the applications.
Features
Durable
Corrosion resistance
High tensile strength
Temperature resistance
Superior finish

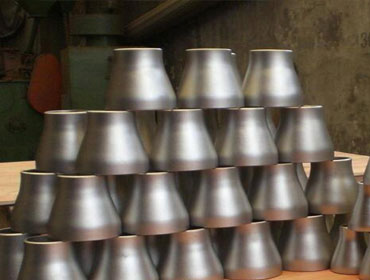

CONCENTRIC & ECCENTRIC REDUCERS
We are offering our clients with concentric / eccentric reducers that are used in petrochemical, power, nuclear and electronic industries. Known for their close tolerances, these stainless steel concentric and eccentric reducers are designed with precise configurations. These reducers are ideal for critical applications that involve high pressure, impulse, vibration and temperature.
Tube Fitting
Specification :
| Quenched & Tempered | ASTM A537 CL.1 & 2 |
|---|---|
| Boiler Quality | SA 516 Gr. 70 |
| International Standard of Stainless Steel Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 SS Strips EN 10088 SA -240-Strips |
| Finish | HR No.1, 2B, BA, Matt, Matt+1 side PVC, BA + 1side PVC, Chequered |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Coils, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Grades :
| Material Type | Grades |
|---|---|
| Mild Steel | ASTM A36, ASTM A283, IS 2062, EN 10025-2 |
| Carbon Steel | ASTM A516, ASTM A537, ASTM A285, ASTM A612, EN 10028-2 |
| High-Strength Low-Alloy (HSLA) Steel | ASTM A572, ASTM A588, ASTM A709, EN 10025-6 |
| Abrasion-Resistant Steel | HARDOX 400, HARDOX 450, HARDOX 500, Abrex 400, Abrex 450, SAIL HARD 400, SAIL HARD 450 |
| Boiler Quality Steel | ASTM A515, ASTM A516, ASTM A387, ASTM A537, EN 10028-2 |
| Pressure Vessel Steel | ASTM A285, ASTM A299, ASTM A455, ASTM A612, EN 10028-3 |
| Structural Steel | ASTM A572, ASTM A588, ASTM A992, EN 10025-2, EN 10025-3 |
| Stainless Steel | Stainless Steel 304, Stainless Steel 316, Stainless Steel 310, Stainless Steel 321 |
| Duplex Stainless Steel | Duplex Stainless Steel 2205, Duplex Stainless Steel 2507 |
| Alloy Steel | ASTM A387, ASTM A588, ASTM A606, ASTM A709, EN 10028-2 |
| Tool Steel | AISI D2, AISI O1, AISI A2, AISI S7, H13 |
| Aluminum | 5052, 5083, 6061, 7075 |
Bulkheads
Bulkhead tube fittings and adapters are designed to facilitate a connection between two sections of a partition. They are available in various sizes and connections to suit your specific application.

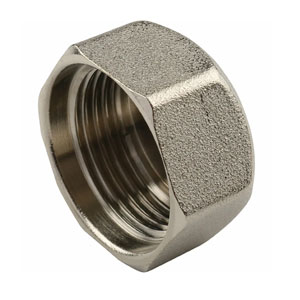

Caps and Plugs
Tube fitting caps and plugs are available in a range of materials and sizes to enable leak-tight sealing and enhanced system safety in a range of applications.

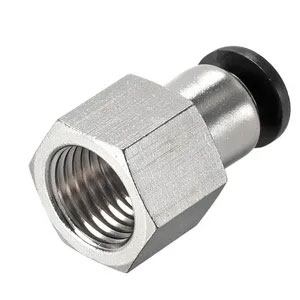

Female Connectors
Female connector tube fittings, available in a range of materials, sizes and configurations, deliver a leak-tight seal that is resistant to vibration fatigue.
Fusible Tube Adapters
Fusible tube adapter fittings enhance the overall safety of your industrial fluid system by releasing Pressure into the atmosphere at a given temperature.
Low Dead Volume Unions
Low dead volume tube fittings are designed to enhance the overall efficiency of your industrial fluid system, even in challenging environments.
Male Connectors
Male connector tube fittings, available in a range of materials, sizes and configurations, deliver a leak-tight seal that is resistant to vibration fatigue.
Mud Daubers
Browse mud dauber fittings (vent protectors) designed with a mesh wire screen to prevent insects and other foreign objects from clogging or damaging systems.
Port Connectors
Port connectors enable fitting-to-fitting connections, offer consistent gaugeability upon installation, and are easy to disconnect and retighten.
Reducers
Tube fitting reducing straights and tees are available in a variety of materials and provide easy installation and consistent gaugeability.
Socket Weld Fittings
Socket weld tube fittings enable proper alignment in small bore fluid systems. Available in multiple sizes and configurations to fit your application.
Spare Parts and Accessories
Explore tube fitting replacement parts and accessories—front ferrules, back ferrules, nuts, gaskets, o-rings, gap inspection gauges, wrenches—and more.
Tube Adapters
Tube adapter straights, elbows and tees allow for fitting-to-fitting connections between a tube fitting and a variety of other end connection types.
Unions
Tube fitting union straights, elbows, tees, and crosses in a variety of materials and sizes provide excellent vibration fatigue resistance and tube support.
Zero Volume Reducers
Check out our zero-volume tube fitting reducers, designed to effectively enhance the overall efficiency of your industrial fluid system.
We introduced ourselves as Vision Metalloys who forayed into the enterprise knowledge of Importer, Exporter, Wholeseller and Supplier Stainless products which is very well accepted in the Domestic market.
