Channels

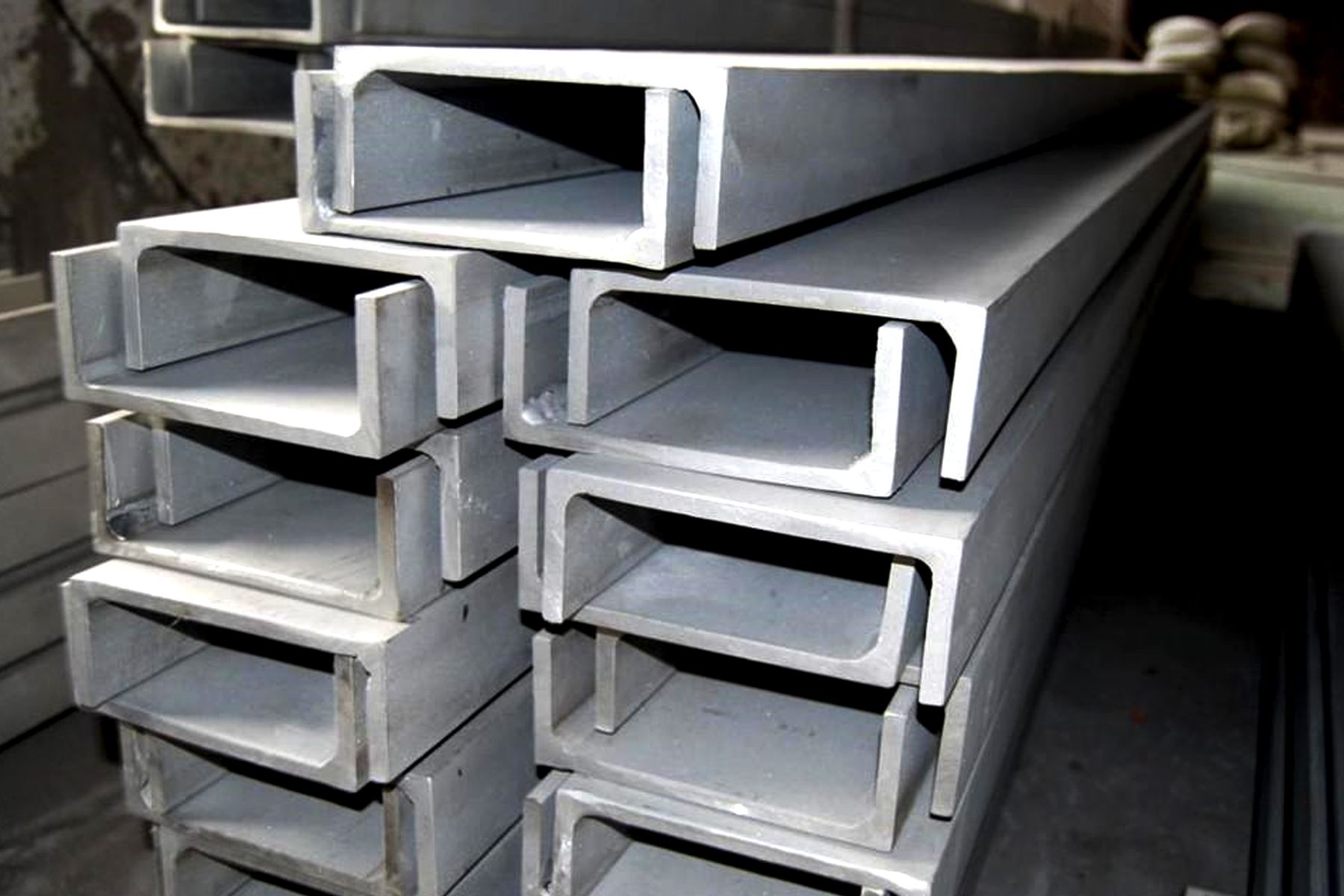

The channels are used as structural supports in industries where stainless steel bars, plates and sheets are used. The channels hold the bars, sheets and plates in place for structural build ups.As a leading Stainless Steel Channel Manufacturer we produce the channels in different shapes, sizes and grades of materials. There are C channels that have three angled stretches and look like a C where the U channels have extended sides and shorter middle section that look like the letter U.The SS 304 U Channel is one of the most used U channels in the stainless steel grades.


SS 304 U Channel Specification Schedule
Standard ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Condition HRAP
Size Range Base: 80 to 150 mm Side: 40 to 75 mm
Thickness 5 to 6 mm (depending on size)
Grades 304, 316
Processing Bar cutting

SS 316 C Channel Composition Standard
Grade C Mn Si P S Cr Mo Ni
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 – 8 – 11
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 - 8 – 13
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 1.0 max 16.00 - 18.00 16.00 - 18.00 10.00 - 14.00

316 Stainless Steel C-channel Mechanical Characteristics
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Equivalent Grades of Stainless Steel U Channel Sizes
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L - 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13   Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
