Circles

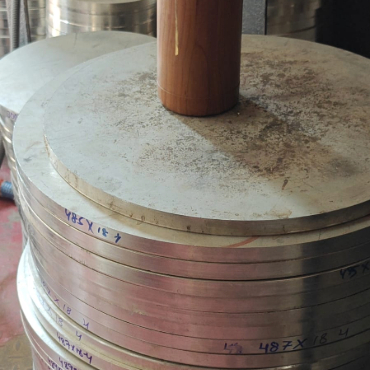

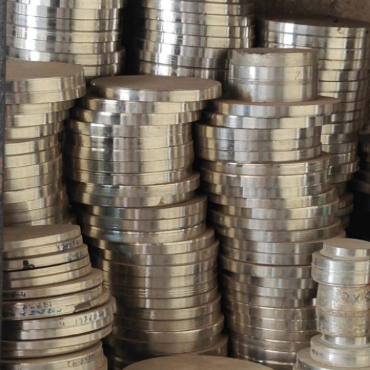

Stainless Steel Circle is a type of the stainless steel sheets and plates that come in the form of a circle.The Stainless Steel Circle comes in different grades of material such as 304, 304L, 316, 316L, 310, 317L and 321 grades.The thickness of the circles range from 1mm to 100mm and the SS 304 Blanks are the most used in the industries. The 304 material is cost effective for general corrosive applications. For applications that require extra corrosion resistance, especially for chloride ion stress corrosion cracking resistance, the Stainless Steel 316 Blanks are used. The 316 material has 201MPa minimum yield strength, 515MPa minimum tensile strength, 870 degrees operating temperature and good hardness. There also other types of blanks.


Material Specification Chart of SS 304 Blanks
Specifications ASTM A240, ASME SA240
Dimensions ASTM, ASME and API
Standard JIS, AISI, ASTM, GB, DIN, EN, etc.
Thickness 1 Mm To 100 mm.
Diameter Upto 2000 Mm.
Circle Diameter 3″ DIA up to 38″ DIA 1500 lbs max.
Circles Form Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Cnc Finish, Polished Unique, Hot Rolled Circle..
Composition Chart of ASTM A240 Stainless Steel 304 Circle
Grade C Mn Si P S Cr Mo Ni
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 – 8 – 11
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 - 8 – 13
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 1.0 max 16.00 - 18.00 16.00 - 18.00 10.00 - 14.00
Stainless Steel Circle Polished Mechanical Properties Chart
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
SS Circle Equivalent Material Grade
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Stainless 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
Stainless 304L 1.4306 / 1.4307 S30403 SUS 304L - 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
Stainless 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
Stainless 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
Thickness Chart Of Stainless Steel Circle
Size 18 G. 19 G. 20 G. 22 G. 24 G. 26 G.
.4.5 .0-107 0-085 0-080 0-062 0.049 0-040
5 0-120 0-095 0-090 0-070 0-055 0-045
5.5 0-146 0-119 0-109 0-085 0-066 0-054
6 0-172 0-136 0-130 0-100 0-079 0-064
6.5 0-200 0-153 0-150 0-128 0-093 0-074
7 0-235 0-190 0-176 0-136 0-107 0-088
7.5 0.270 0.212 0.201 0-157 0-123 0-100
8 0-307 0-240 0-230 0-180 0-140 0-115
8.5 0-347 0-270 0-262 0-202 0-156 0-130
9 0-388 0-330 0-301 0-230 0-178 0-145
9.5 0-472 0-342 0-324 0-252 0-198 0-162
10 0-480 0-380 0-360 0-280 0-220 0-180
11 0-580 0-450 0-435 0-338 0-266 0-218
12 0-690 0-540 0-518 0-403 0-318 0-253
13 0-811 0-640 0-508 0-608 0-371 0-304
14 0-940 0-750 0-708 0-558 0-430 0-352
15 1-080 0-860 0-808 0-650 0-495 0-405
16 1-228 0-960 0-921 0-736 0-563 0-460
17 1-382 1-080 0-940 0-809 0-635 0-560
18 1-595 1-200 1-116 0-907 0-712 0-683
19 1-732 1-350 1-300 1-010 0-794 0-750
20 1-920 1-400 1-340 1-120 0-880 0-785
